Parameter Set Page

One of the tasks that a business process administrator/end user needs to accomplish is managing parameter sets for a given business process. After a parameter set is established, the user should be able to launch a new instance of the business process and direct the user to a separate page to view the history of previous business process instances. In addition, the user needs to permission and secure a parameter set for a particular site and/or role.

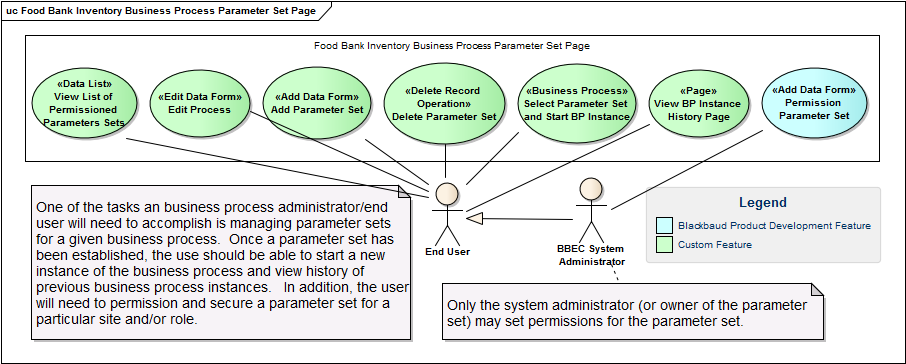

A page should be constructed that contains a data list to allow the viewing of parameter sets for the business process. The page should allow for the selection of a parameter set for the purpose of starting a business process instance and the securing of a parameter set for a site and or role. The UML use case diagram displays how the user interacts with the page. Each oval represents a use case that is a discrete and repeatable interaction that a user or "actor" experiences when using the page. Actors represent the users of the system. Users can be human, machine or other computer systems.
