Exercise: Configure a Task within Our New Functional Area

Step 1 -  Click the Shell Design task to open the Shell Design page, select the Tasks tab, and click the Add action above the Tasks data list.

Step 2 -  Configure task properties .

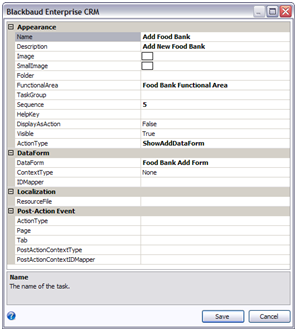

After you click the Add action, a properties dialog window appears. Enter the following values for the Name, Description, Functional Area, ActionType, and DataForm properties.

Properties for Our New Food Bank Page

Property	Value
Name	Add Food Bank
Description	Add a new food bank
FunctionalArea	Food Bank Functional Area
Sequence	5
ActionType	ShowAddDataForm
DataForm	Food Bank Add Form

Step 3 -  Refresh shell navigation, test drive the task, and add a food bank.

Click Refresh Shell Navigation under Tasks to view the new Food Bank functional area and task. Go ahead and try out the new task. When you click the task, the Food Bank Add Form appears. To add a food bank, select a constituent, description, mission statement, and food bank type. The food bank type is a code table, and therefore, you can dynamically add food bank types on the fly.
